Revisiting Transfer Functions: Learning About a Lagged Exposure-Outcome Association in Time-Series Data

Hiroshi Mamiya
Hiroshi Mamiya*Alexandra M. SchmidtAlexandra M. SchmidtErica E. M. MoodieErica E. M. MoodieDavid L. BuckeridgeDavid L. Buckeridge
  • Department of Epidemiology, Biostatistics and Occupational Health, School of Population and Global Health, McGill University, Montreal, QC, Canada


Environmental exposures often show a time-lagged association with outcomes [13]. Distributed lag models have been used to capture such lag patterns by incorporating time-lagged values of exposures, with the corresponding of the lag structure approximated by polynomials or splines [1, 4]. These models require the correct input of cut-off time, or pre-specified window (hereafter termed lag length), after which the association diminishes to a constant level, typically zero [5, 6]. However, lag length is often unknown [57]. To fit distributed lag models without specifying lag length, we revisit transfer functions (TFs), a method to specify time-lagged associations commonly used in econometrics and introduced to epidemiology in 1991 [810]. We provide a case study to capture the time-lagged association between weekly purchasing outcome of sugar-sweetened drinkable yogurt and weekly-varying display promotion of these beverages, which is an obesogenic food environmental exposure in supermarkets.


TFs capture a time-lagged exposure-outcome association using a structural variable, denoted Et, which summarizes the current association (at time t) and cumulative association (up to time t) between the outcome variable Yt and time-lagged exposure variable Xt−1 + Xt−2 + Xt−3+... [8, 11] (Supplementary Appendix S1). We illustrate a simple form of TF to capture a commonly observed shape of lag pattern, a monotonically decreasing association of outcome and lagged exposure, often called the Koyck decay [12]. Using the decay coefficient of lagged association λ up to lag h, the decreasing associations are represented as


which recursively reduces to


The coefficient β captures the immediate association at time t, and the value of decay coefficient λ closer to 1 implies a more persistent association over time (i.e., slower decay), while a value closer to zero indicates a shorter lag [12, 13]. Constraining λ to be 0 < λ < 1 ensures the association monotonically decaying towards zero when the value of β is positive (Supplementary Figure S1A), and previous studies also imposed the decay towards zero [14, 15]. The variable Et is added to a time-series regression for the outcome Yt to estimate β and λ as Yt = Et + Ztγ + εt, where Zt represents a set of covariates and intercept with coefficients γ, and εt represents the error term [10, 13].

A visual interpretation of a lagged association combining these coefficients is provided by an impulse response function (IRF), representing the change of the outcome Yt+0 + Yt+1 + Yt+2 + … + Yt+h to an impulse (one-unit increase of x at time t only), while holding other variables constant [16]. The IRF of the Koyck decay is β + βλ1 + βλ2 + … + βλh, visualized in Figure 1.

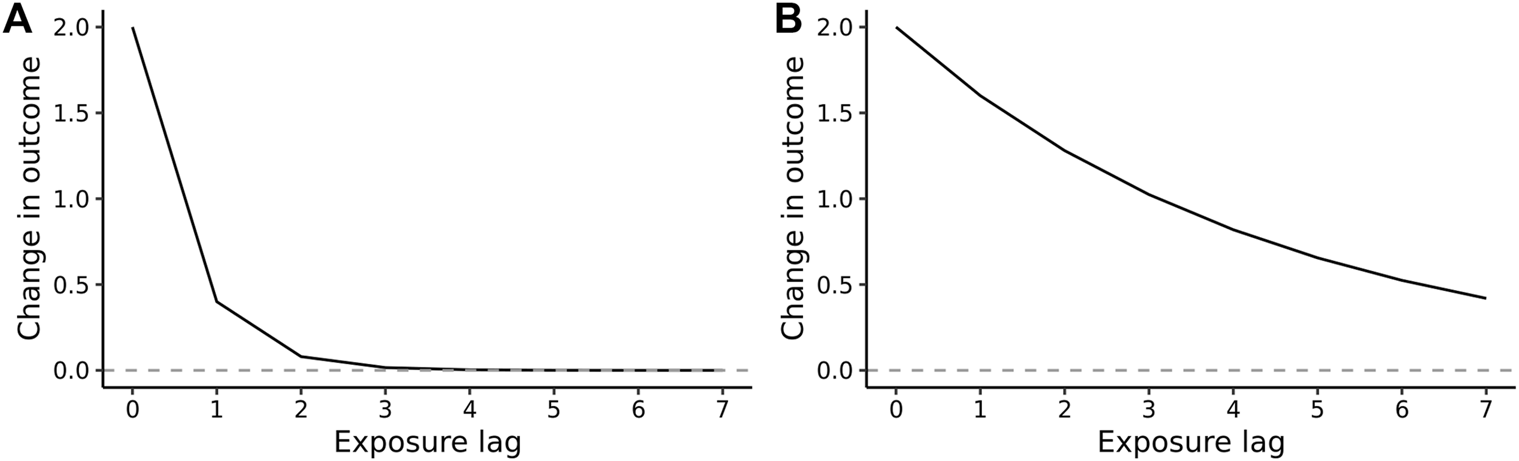

FIGURE 1. Hypothetical impulse response function of the Koyck lag transfer function, with the rate and extent of decay being controlled by the value of the lag parameter λ: (A) a weak decay returning to the baseline with a short lag (λ = 0.2): (B) a more persistent lag, i.e., slower decay (λ = 0.8). The value of the immediate effect, β, at the time of exposure (x = 0) is 2.0 in both plots (Hypothetical function, 2022).

The general specification of the TF capturing various shapes of lag structure is


where the Koyck decay is captured by p = 0, q = 1 in Eq. 1 above. More complex shapes are specified by higher values of p and q (Figure 2; Supplementary Appendix S2), allowing generalization to classical lag models, such as the Almon polynomial [10, 17].

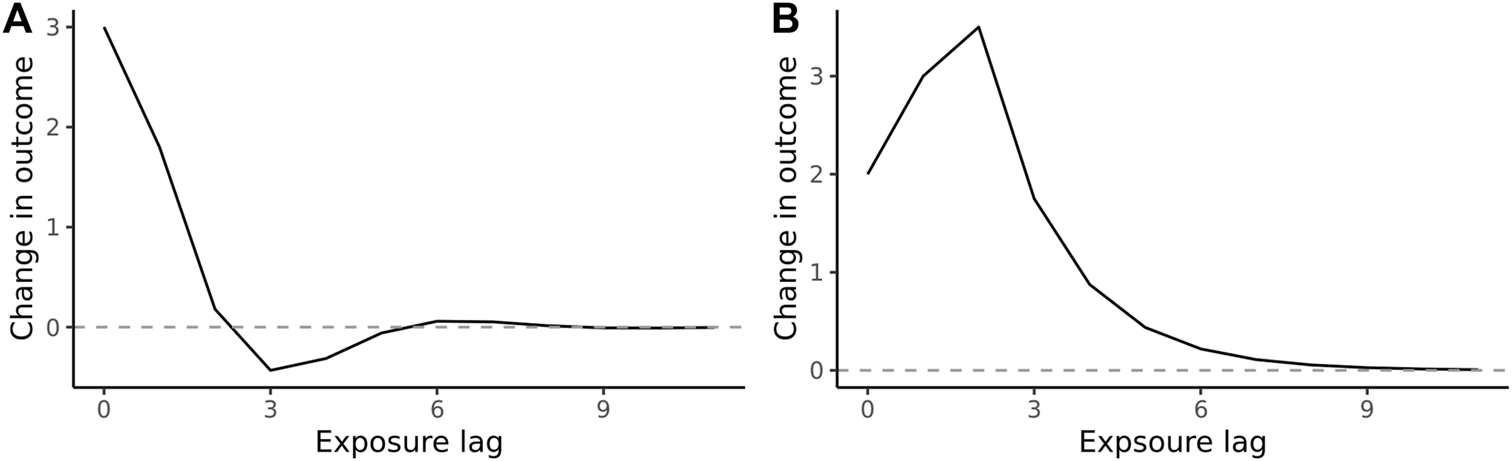

FIGURE 2. Hypothetical impulse response function of (A) short-term negative association (a “dip” below zero) following the decay of positive association and (B) delayed peak of positive association (Hypothetical function, 2022).

Unlike commonly used distributed lag models, TF models obviates pre-specification of a lag length h, but require prior biological and epidemiological knowledge to help select plausible shapes of the lag (values of p and q). Deciding among candidate shapes is facilitated by model selection using fit metrics such as an information criterion [11].

Case Study

The exposure is the weekly within-store display promotion of sugar-sweetened food items that potentially exhibits time-lagged association with the number of these items sold (outcome). Display promotion is the temporary placement of items in prominent locations to increase sales of (typically) ultra-processed food [18]. Our food of interest is sugar sweetened (not plain) drinkable yogurt, a hidden and important source of dietary sugar among children [19, 20]. A time series of weekly proportion of display-promoted sugar-sweetened drinkable yogurt items (continuous exposure) and weekly sum of the sales quantity of these items (continuous outcome) are recorded from a large supermarket in Montreal, Canada over T = 311 weeks (6 years). Supplementary Appendix S3 and Supplementary Figures S2, S3 elaborate the definition of the exposure and outcome.

The time-series regression used in this study is a dynamic linear model [21, 22]. We added the structural variable, Et, covariates, a seasonal term, and an intercept. We selected the Koyck lag TF (p = 0, q = 1) for Et, since the promotion exposure is likely to have a monotonically decaying association with purchasing [6]. The model was fit under the Bayesian framework as described in Supplementary Appendix S4.

The estimated immediate effect of the TF β was 0.68 (95% Posterior Credible Interval [CI]: 0.39–0.96), implying two-fold increase in sales at week t, if all yogurt items were display- promoted in the same week. The point estimate of the decay coefficient λ was moderately strong: 0.47 (95% CI 0.20–0.72), as shown by the distinct lag in the estimated IRF (Figure 3). Residual diagnostics indicate the absence of temporally autocorrelated residuals (Supplementary Figure S4).

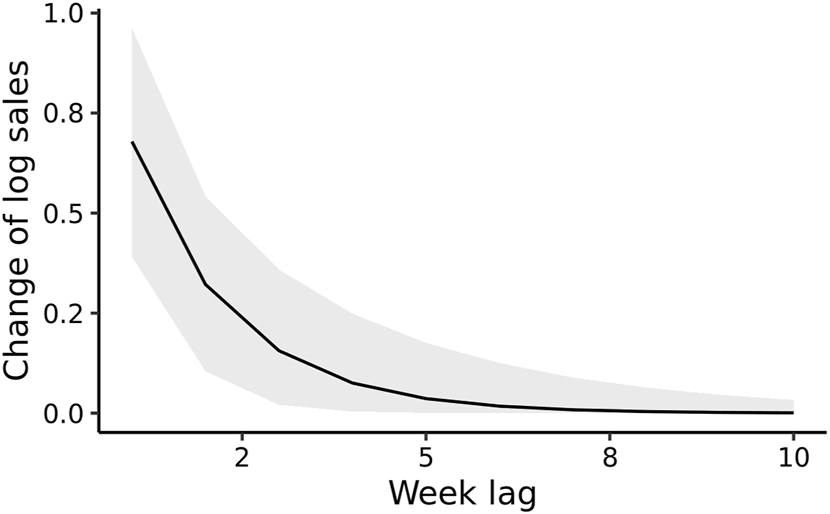

FIGURE 3. The estimated impulse response function of display promotion on the (natural log) sales of sugar-sweetened drinkable yogurt, based on the lag parameters β and λ learned from the time-series of sales data from a single store (Montreal, Canada, 2008–2013). The grey band indicates pointwise 95% posterior credible interval. The immediate association is displayed at lag 0 and is 0.68 (95% Posterior Credible Interval: 0.39–0.96), indicating that the immediate impact of display promotion is a doubling of sales, since exp(0.68) = 1.97.


Time-lagged exposure-outcome associations are of critical interest in time-series analysis. We described TF modeling to estimate lagged associations when lag length is unknown a priori. Previous applications of TFs include environmental time-series analysis to capture decaying associations between arbovirus incidence and temperature [23] and interrupted time-series analysis to capture the persistent effect of interventions [11, 24]. TF modeling requires pre-specification of the shape of a lag structure from investigators’ prior knowledge followed by their selection based on model fit. When such knowledge is lacking, existing distributed lag models such as those using splines allow data-driven estimation of the shape of lag. They require the specification of lag length by model selection applied to plausible lag lengths [25], by setting a long enough length to cover the unobserved true lag window with a potential sacrifice of precision [4], or alternatively estimating the lag length from data [26, 27]. Limitations of TFs include challenges in selecting the most appropriate shape of lag, when competing shapes show similar model fit. Finally, a comprehensive evaluation of TFs to capture lagged associations from simulated environmental health data is warranted, including their capacities to capture non-linear exposure-outcome associations by making β time-varying (dynamic) or imposing non-linear structure to Et [17, 28].
